Leviton

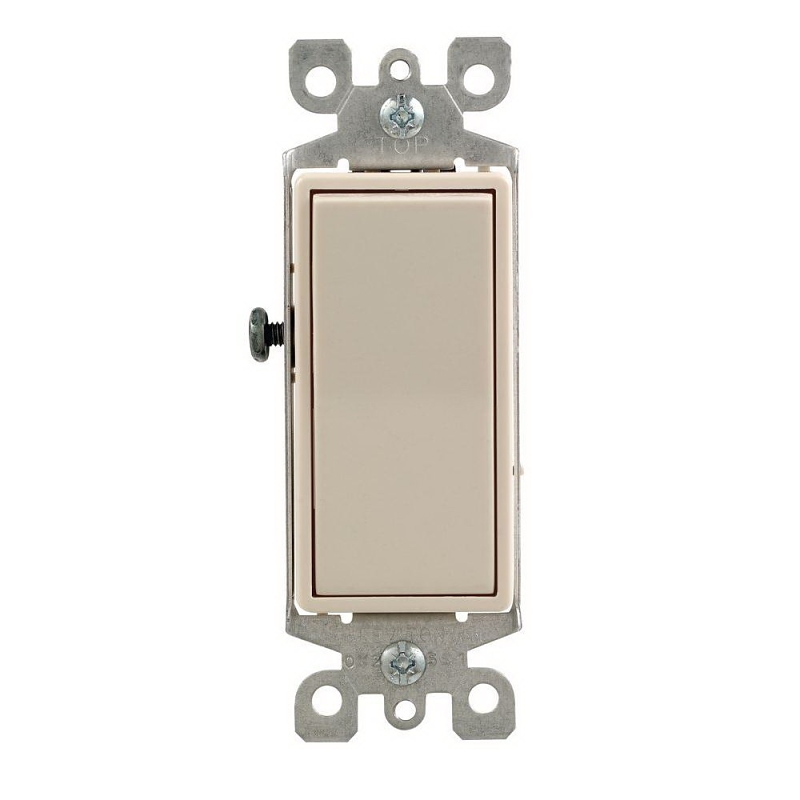

Leviton M36-05601-2TM Rocker Switch with Ground Screw, 15 A, 120/277 V, SPST, Lead Wire Terminal, Light Almond
- Color: Light Almond
- Contact Configuration: SPST
- Current Rating: 15 A
- Dimensions: 4.2 in L x 1.4 in W
- Housing Material: Thermoplastic
- Model #: M36-05601-2TM
- UPC #: 078477458457
- SKU: 4810917
Your shopping list will be used for pickup in-store
Product Details
Featuring a look and feel that qualify them as modern classics, Decora designer rocker switches add so much at a modest cost that no home should be without them. Their sleek simplicity and smooth, quiet operation stem from quality materials fitted to tight tolerances and finished with great care, ensuring years of trouble-free service. Easy to wire, they work with tungsten, fluorescent and resistive loads. Legendary Decora designer rocker switches come in a variety of colors to harmonize with any decor. Their sturdy construction and dependable performance are everything you'd expect from the pre-eminent switch maker.Key Features
- Full-rated current capacity with tungsten, fluorescent or resistive loads
- Motor capacity is 80% of switch rating
- Sturdy construction for long service life
- Terminal screws accept up to #12 AWG copper or copper-clad wire
- Quickwire® push-in terminals accept #14 AWG solid copper wire only
- Self-grounding when installed in a properly grounded metal box
Item Specifications
| Color | Light Almond |
|---|---|
| Contact Configuration | SPST |
| Current Rating | 15 A |
| Dimensions | 4.2 in L x 1.4 in W |
| Housing Material | Thermoplastic |
| Mounting Type | Screw |
| Number of Poles | 1 |
|---|---|
| Temperature Rating | -40 to 120 deg C |
| Terminal Type | Lead Wire |
| Voltage Rating | 120/277 V |
| Wattage Rating | 0.5 to 2 hp |
MORE DETAILS:
- Application: For residential applications
- Warranty: 2 Year Limited
